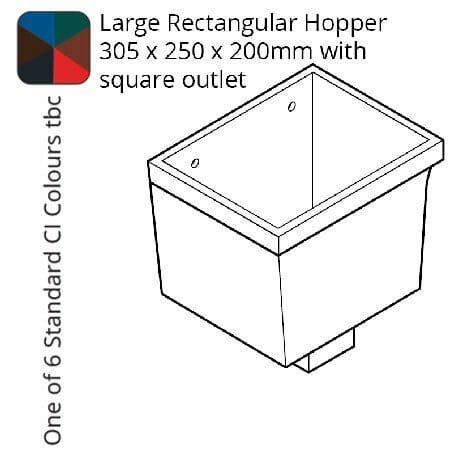

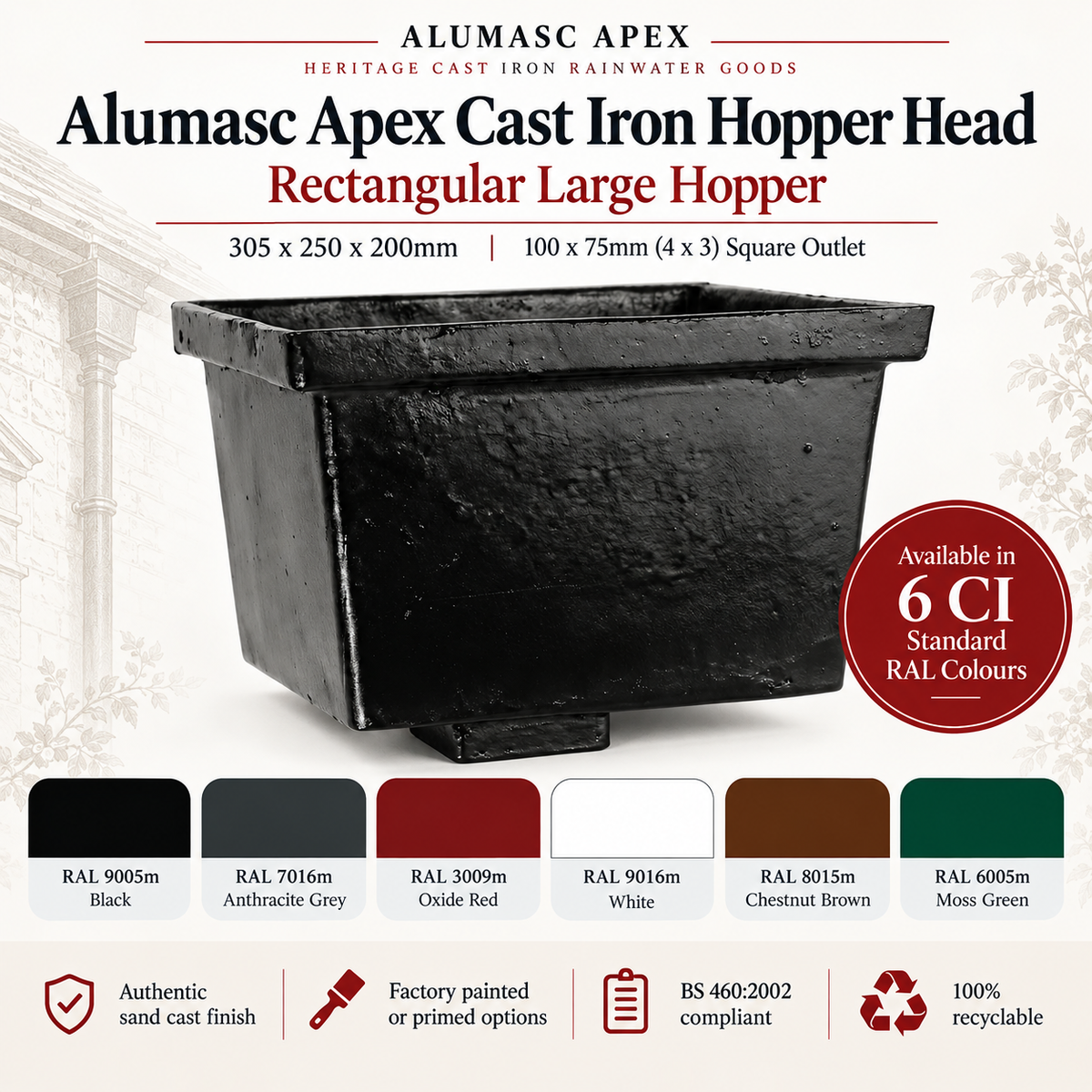

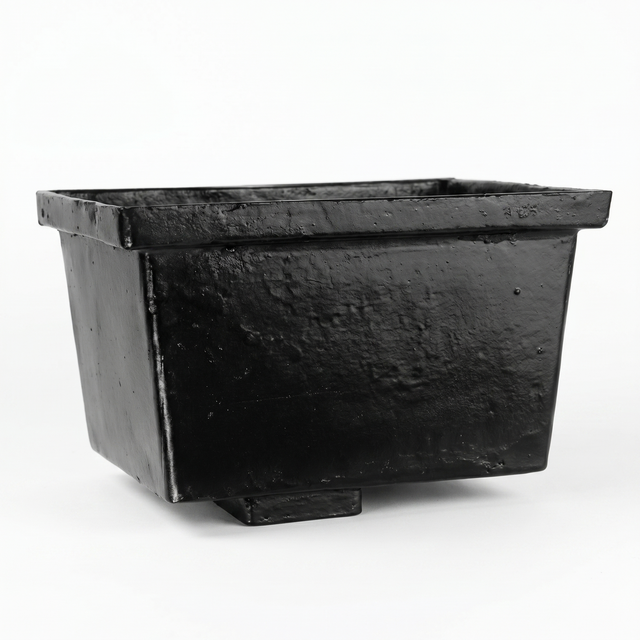

Alumasc Apex Cast Iron Rectangular Large (305 x 250 x 200mm) Rainwater Hopper Head with 100 x 75mm (4"x3") Square Outlet - One of 6 CI Standard RAL Colours TBC

Alumasc Apex Cast Iron Rectangular Large Rainwater Hopper Head

Measuring 305 x 250 x 200mm, this large rectangular hopper provides a generous collection point for rainwater entering from gutters, roof outlets or other drainage points. It is supplied with a 100 x 75mm (4" x 3") outlet, allowing it to connect into a corresponding rectangular cast iron downpipe system.

Manufactured as part of the Alumasc Apex Heritage cast iron rainwater range, the hopper has the characteristic texture and weight you would expect from an authentic cast iron fitting. Its simple rectangular shape also makes it a good choice where you want the rainwater goods to sit comfortably against traditional architecture without using an overly decorative hopper design.

Choose From 6 Standard Cast Iron RAL Colours

This hopper can be ordered in a choice of six standard Alumasc cast iron RAL colours, making it easier to coordinate the hopper head with the rest of your guttering, downpipes and external detailing.

Available finishes include:

• RAL 9005m – Black
• RAL 7016m – Anthracite Grey
• RAL 3009m – Oxide Red
• RAL 9016m – White
• RAL 8015m – Chestnut Brown
• RAL 6005m – Moss Green

Black remains the most traditional choice for many period properties, while Anthracite Grey can give the system a slightly cleaner appearance. Moss Green, Oxide Red and Chestnut Brown can work particularly well on heritage buildings where the rainwater goods are intended to complement existing architectural colours.

Because these coloured hopper heads are made to order, the finish is selected specifically for your order rather than taken from standard stock.

Where Would You Use This Cast Iron Hopper?

A cast iron hopper head is normally positioned at the top of a downpipe where rainwater needs to be collected before entering the vertical drainage system. This larger rectangular model is especially useful where the installation requires a more substantial hopper rather than a small decorative head.

It may be suitable for:

• Period and heritage property renovations
• Traditional cast iron rainwater systems
• Larger roof drainage points
• Connections beneath roof outlets or valleys
• Projects using 100 x 75mm rectangular cast iron downpipes
• Replacement work where a similarly sized rectangular hopper already exists

If you're matching an existing system, we recommend checking the hopper dimensions and outlet size carefully before ordering. Older cast iron rainwater systems can vary considerably, so it is worth measuring the existing fitting rather than choosing by appearance alone.

Product Specification

• Product: Large Rectangular Cast Iron Rainwater Hopper Head
• Manufacturer: Alumasc
• Range: Apex Heritage
• Material: Cast iron
• Hopper size: 305 x 250 x 200mm
• Outlet size: 100 x 75mm / 4" x 3"
• Outlet style: Rectangular / square-style outlet
• Finish: One of 6 standard CI RAL colours
• Application: Traditional and heritage rainwater systems

Made to Order – Please Read Before Purchasing

PLEASE NOTE: These coloured cast iron hopper heads are made to order specifically for your requirements and are therefore non-refundable.

Please make sure you have selected the correct hopper size, outlet size and RAL colour before placing your order.

Estimated delivery: 7–10 working days from the point of order.
