Cast Iron Guttering Sizes Explained

Choosing cast iron guttering sounds simple until you actually start looking at the sizes.

You’ll see terms like 100mm half round, 125mm beaded half round, Victorian ogee, 65mm downpipe and 100mm downpipe - and if you’re replacing an old system, it can become quite confusing

It's important to understand:

Cast iron gutter size is not just about width. It also covers the actual profile, roof area, downpipe size, and how much rainwater the system needs to carry.

A small porch will often not require equal gutter capacity as a large roof slope. A short run with one outlet behaves differently to a long run with one downpipe at the end. And if you are matching an existing cast iron system on an older property, profile matters just as much as measurement.

Quick Answer: What Size Cast Iron Guttering Do I Need?

For most UK properties 115mm or 125mm cast iron guttering is the most common choice. Smaller areas such as porches, garages and outbuildings may use 100mm guttering, while larger roofs, commercial buildings or long gutter runs may need 150mm guttering.

Area of Property	Common Gutter Size	Common Downpipe Size	Best Fit
Porch, bay window, small roof	100mm	50mm or 65mm	Small drainage areas
Standard house roof	115mm or 125mm	65mm or 75mm	Most domestic properties
Larger house, long run or heavy roof area	150mm	75mm or 100mm	Higher rainwater capacity
Commercial or large heritage building	150mm+	100mm+	Larger roof drainage needs

This is a help guide and should not be used as a substitute for a proper drainage calculation. If the roof is large, complex, very exposed, or has long gutter runs, you should really check the capacity properly before ordering with us.

First: Understand What “Gutter Size” Actually Means

When a cast iron gutter is described as 100mm, 115mm, 125mm or 150mm, this usually refers to the nominal width of the gutter profile.

That does not always tell you everything about how much water it can carry.

Two gutters can have a similar width but different capacity because of their shape. For example, a deepflow cast iron gutter profile will usually carry more water than a shallow half round profile of the same nominal width.

So when choosing cast iron guttering, you need to look at:

• the width of the gutter
• the profile shape
• the length of the run
• the number and position of outlets
• the downpipe size
• the roof area draining into that section

This is where many people get caught out. They measure the old gutter, order the nearest-looking size, then later realise the outlet or downpipe does not match.

Common Cast Iron Gutter Sizes in the UK

Most domestic cast iron guttering systems fall into these common size ranges.

Gutter Size	Typical Use	Notes
100mm	Porches, small extensions, garages, outbuildings	Useful for smaller roof areas, but often too small for main house roofs
115mm	Traditional domestic properties	Often seen on older UK homes and period-style systems
125mm	Standard domestic roofs	A common practical size for modern replacement cast iron guttering
150mm	Larger homes, long runs, heavier roof drainage	Better where more rainwater capacity is needed

The safest way to think about it is simple:

100mm is small. 115mm and 125mm are normal domestic sizes. 150mm is for larger or higher-capacity runs.

If you are replacing existing guttering, do not assume the old system is correctly sized. It may have been altered, patched, or replaced badly over the years.

Cast Iron Gutter Profiles and Why They Affect Size

Cast iron gutters come in different profiles. The profile affects appearance, capacity, and how well it matches an older building.

Half Round Cast Iron Guttering

Half round is one of the most common profiles. It has a simple curved shape and suits a wide range of properties.

Common sizes include:

Half Round Size	Typical Use
100mm	Small roofs, porches and outbuildings
115mm / 125mm	Standard domestic rooflines
150mm	Larger homes or longer gutter runs

Half round is usually the easiest profile to understand and match. If you are replacing a simple domestic gutter system, this is often the first profile to check.

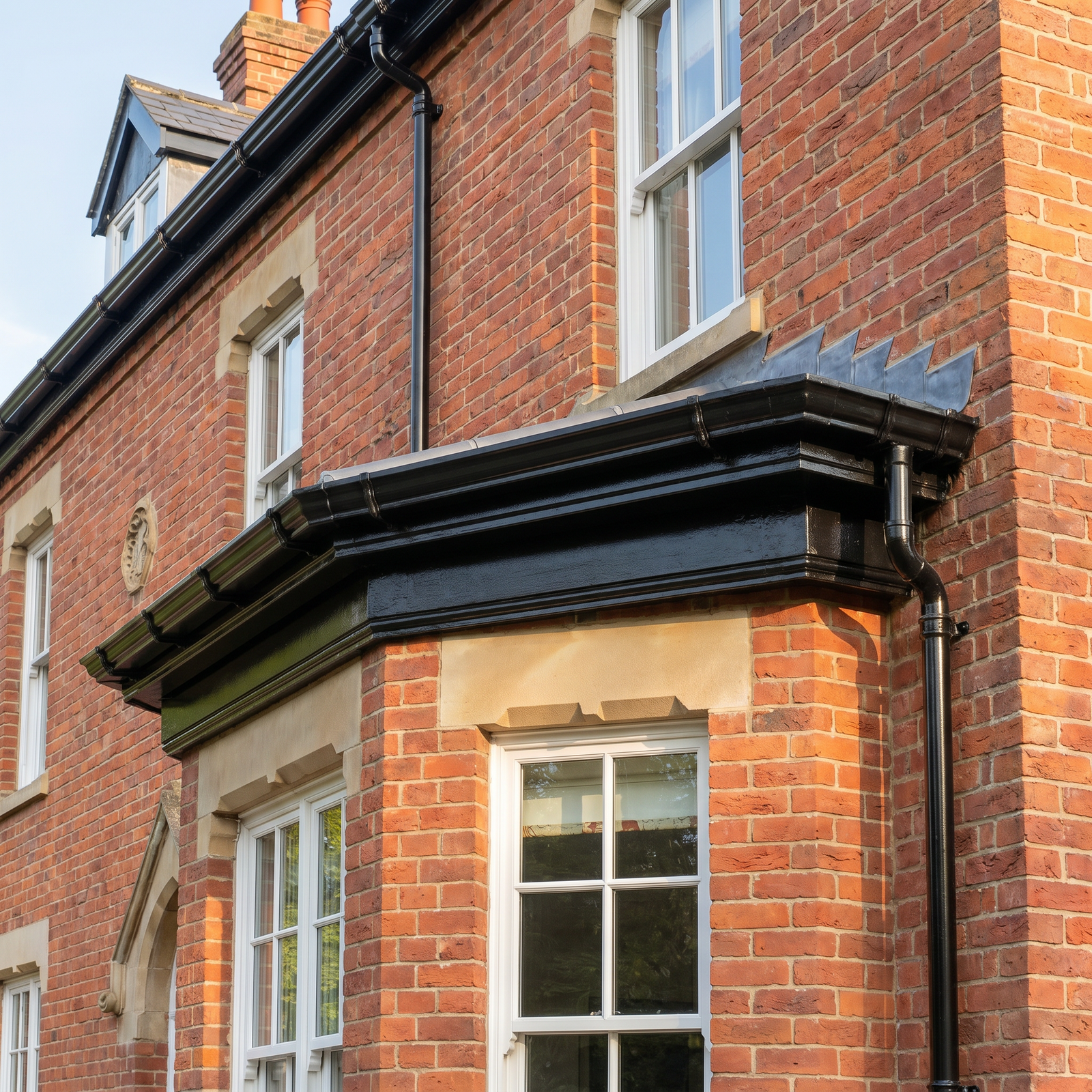

The above image shows the plain half round cast iron gutter profile on a heritage building here in the UK.

Beaded Half Round Cast Iron Guttering

Beaded half round guttering is similar in shape to standard half round, but with a decorative bead along the front edge.

It is often chosen for period properties because it gives a more traditional finish.

The sizing logic is similar to half round guttering, but you still need to match like-for-like if replacing an existing system. A beaded profile may not sit or connect the same way as a plain half round profile.

Ogee and Victorian Ogee Cast Iron Guttering

Cast iron Victorian Ogee guttering has a more decorative front profile. It is common on traditional and period-style buildings.

This is where size can become slightly more confusing because ogee gutters may be described by their width and depth, rather than just one simple measurement.

For older properties, matching the existing ogee profile is often more important than simply choosing the closest width. Two ogee gutters can look similar in photos but differ enough that outlets, unions and angles do not line up properly.

If you are replacing ogee cast iron guttering, measure carefully and compare the full profile shape before ordering.


Above shows the Ogee profile on a UK property

Common Cast Iron Downpipe Sizes

Your gutter size and downpipe size need to work together. A large gutter feeding into a small cast iron downpipe can still overflow if the outlet cannot discharge water quickly enough.

Common UK cast iron downpipe sizes include:

Downpipe Size	Typical Use
50mm	Very small roof areas or decorative/limited applications
65mm	Small to standard domestic runs
75mm	Common domestic downpipe size
100mm	Larger homes, long gutter runs, commercial or heritage buildings
150mm	Larger commercial or specialist drainage requirements

For most houses, 65mm or 75mm cast iron downpipes are common. Larger buildings or high-capacity systems may need 100mm downpipes.

Again, do not only match the gutter. Match the whole system: gutter, outlet, downpipe and fittings.

The Apex Rectangular Cast Iron Downpipes on a London building.

Matching Gutter Size to Roof Size

The larger the roof area draining into a gutter, the more capacity the system needs.

As a rough guide:

Roof Situation	Likely Gutter Choice
Small single roof slope	100mm or 115mm
Standard two-storey house roof	115mm or 125mm
Large detached house	125mm or 150mm
Long roof run with one outlet	Consider 150mm or extra outlets
Valley roof draining into one section	Higher-capacity gutter recommended
Commercial or large heritage building	Specialist sizing advised

A common mistake is only looking at the length of the gutter run. Length matters, but roof area matters more.

A short gutter serving a large roof slope can carry more water than a long gutter serving a narrow porch roof.

How to Measure Existing Cast Iron Guttering

If you are replacing an existing system, measure before ordering.

You should check:

1. Gutter width
   Measure across the top opening of the gutter where possible.


2. Gutter profile
   Is it half round, beaded half round, ogee, deepflow or another shape?


3. Downpipe diameter
   For round downpipes, measure the outside diameter.


4. Outlet size
   The outlet needs to match both the gutter and the downpipe.


5. Fittings
   Check angles, stop ends, unions, brackets, shoes and bends.


6. Old vs new compatibility
   Very old systems may not match modern cast iron sizes exactly.

This last point matters. If your property has original or very old cast iron guttering, it may not match modern off-the-shelf sizes perfectly. In that case, it is better to check before assuming a standard part will fit.

What Happens If You Choose the Wrong Size?

Choosing the wrong size can cause practical problems.

If the gutter is too small, you may get:

• overflowing during heavy rain
• water running down external walls
• damp patches near the base of the building
• staining on brickwork or render
• pressure on joints and outlets

If the downpipe is too small, the gutter may fill faster than it can drain away.

If the profile is wrong, the system may not connect properly to existing fittings.

This is why sizing is not just a cosmetic decision. It affects how well the whole rainwater system works.

Simple Rule of Thumb

For most UK domestic properties:

• 100mm is for smaller roof areas
• 115mm or 125mm is usually suitable for standard house rooflines
• 150mm is better for larger roofs, long runs or higher-capacity drainage
• 65mm or 75mm downpipes suit many domestic systems
• 100mm downpipes are better for larger systems

If you are unsure, it is usually safer to size up rather than undersize — especially on exposed properties, long runs, or roof areas with heavy water flow.



FAQs

How do I know what size cast iron guttering I have?

Measure the width across the top of the gutter and identify the profile shape. Also measure the downpipe diameter and check the outlet. If the system is old, do not assume modern fittings will automatically match.

Is 100mm cast iron guttering big enough for a house?

Usually, 100mm guttering is better suited to smaller roof areas. For a main house roof, 115mm or 125mm is more commonly used. Larger roofs or long gutter runs may need 150mm.

What size cast iron downpipe do I need?

Many domestic cast iron systems use 65mm or 75mm downpipes. Larger roof areas, longer runs or commercial-style systems may need 100mm downpipes. The downpipe should be matched to the gutter outlet and expected water flow.

Does gutter profile affect size?

Yes. A 125mm half round gutter and a decorative ogee gutter may not have the same shape, capacity or fittings. Always check both size and profile before buying replacement parts.

Cast iron guttering sizes are not difficult once you separate the basics.

You need to know the gutter width, the profile, and the downpipe size. Then you need to think about the roof area that section of gutter is actually draining.

For most UK homes, 115mm or 125mm cast iron guttering is the normal starting point. 100mm is better for smaller roof areas, while 150mm gives more capacity for larger roofs and longer runs.

The main thing is not to guess from appearance alone. Measure the existing system, check the profile, and make sure the gutter, outlet and downpipe all match before ordering.
